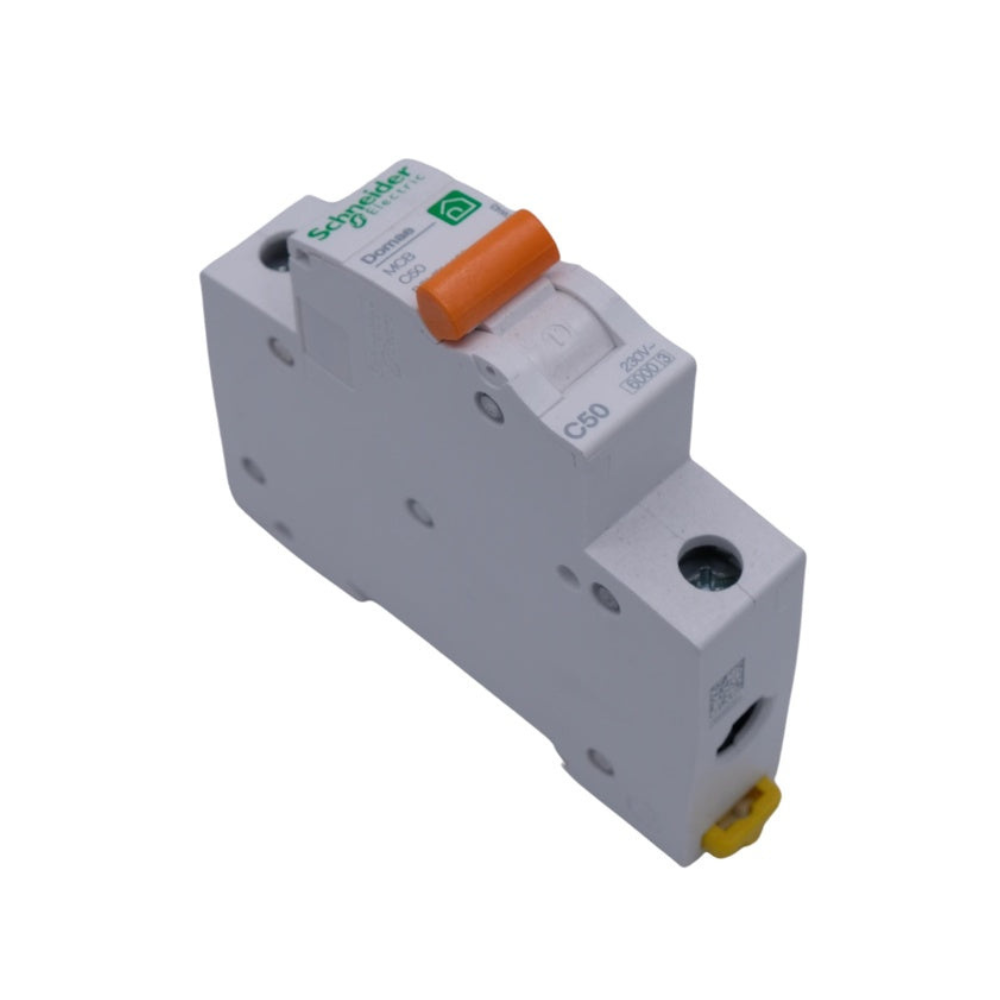

MCB MERLIN GERIN 50A

"MCB Schneider DOMAE Merlin Gerin 2A 4A 6A 10A 16A 20A 25A 32A 40A 50A

Untuk pemakaian dengan arus hubung singkat 6 kA
- Kapasitas pemutusan:
- Standar SNI IEC 60898-1 : 2009
- Icn = 6000A (230V - 1P, 400V - 3P).
- Kurva C (magnetis trip antara 5 dan 10 In).
- Daya Tahan MCB:
- Electrical Trip: 10.000 kali
- Mehanical Trip: 20.000 kali

Spesifikasi :
1. poles description : 1P
2. number of protected poles : 1
3. [In] rated current : 2A 4A 6A 10A 16A 20A 25A 32A 40A 50A
4. network type : AC
5. curve code : C
6. breaking capacity :
- 6000 A (2A 4A 6A 10A 16A 20A 25A conforming to IEC 60898-1 - 230 V AC 50 Hz
- 4500 A (32A 40A 50A) conforming to IEC 60898-1 - 230 V AC 50 Hz
7. network frequency : 50 Hz
8. [Ue] rated operational voltage : 220...240 V AC 50 Hz
9. control type : Toggle
10. mounting mode : Clip-on
11. mounting support : DIN rail
12. comb busbar and distribution block compatibility : YES
13. 9 mm pitches : 2
14. colour : White""
